PRODUCTS

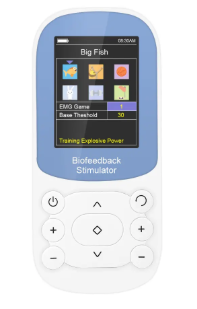

Biofeedback Stimulator KM203

The Konmed biofeedback stimulator KM203 uses biofeedback and electrical stimulation techniques to self muscle contraction and passive stimulation training in games through human biological signals, triggering threshold electrical stimulation training. Suitable for relieving discomfort in various parts of the body, neuromuscular rehabilitation, pain relief, pelvic floor rehabilitation, and other symptoms.

Features
• 2 channel EMG (Biofeedback) combined with 2 channels STIM (stimulation).
• 2 channel ETS (EMG triggered stimulation) with stimulation on 2 channels.
• 90 levels of electrical stimulation intensity.
• 2.8-inch color TFT display and 1200mAh large-capacity lithium battery.

Description

Biofeedback Stimulator KM203

Pelvic floor rehabilitation
The KM203 effectively addresses a range of conditions including pelvic pain reduction, treatment of stress, urge (OAB), mixed urinary incontinence, as well as faecal incontinence.

Pain relief and Relieve discomfort in all parts of the body
KM203 meets a wide range of physical discomfort needs, such as Pain relief common allergies, bloating, diarrhea, constipation and cough. In addition, it is also suitable for gynecology, hypertension, hypotonia, swallowing training.

Neuromuscular Rehabilitation
The KM203 offers specialized programs for post-stroke and paresis rehabilitation, post-multiple sclerosis rehabilitation, as well as reducing pain.

Designed for Physiotherapist in mind to be used as a portable tool. Suitable as a personal trainer for in-clinic or home use (under guidance).

Product function

EMG
5 minutes standard test or 1 minute rapid test to obtain electromyographic values.

ETS
ETS stands for EMG triggered by Stimulation. ETS is a very powerful technique for muscular rehabilitation, especially useful for Incontinence and Stroke rehabilitation, self and passive modes promote the reconstruction of neural function.

Mirror
When the electromyographic value of the patient's muscle movement exceeds the set threshold (self -trained by the patient), the instrument provides electrical stimulation therapy (passive therapy), which is a combination of self and passive modes. self and passive modes promote the reconstruction of neural function.

Game
Biofeedback game training, using games to perform muscle contractions of different frequencies and intensities, and self treatment.

STIM
Multiple neurological rehabilitation programs, pain relief programs, pelvic floor rehabilitation programs.

Programs

EMG TEST Programs	2
ETS	1
Mirror Therapy Programs	1
EMG Games	6
Pre-set STIM Programs for Pain Relief and Relieve Discomfort in All Parts of the Body	23
Pre-set STIM Frequency Program for Neuromuscular Rehabilitation	10
Pre-set STIM Programs for Pelvic floor Rehabilitation	11
Custom Mode Programs	3


Biofeedback stimulators for personal use

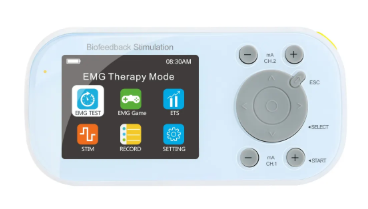

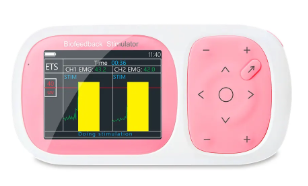

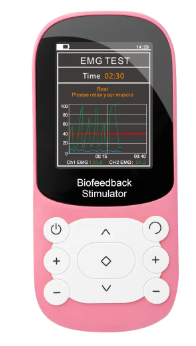

	KM530	KM531	KM536	KM537	KM203

Channel	2 Channel EMG 2 Channel STIM
Power	Lithium battery
Display	2.8-inch TFT display
User Record	✓
Electrode pad	✓
Probe	✓				Optional
Pelvic Sitmulation modes	22	22	17	17	11 Pelvic mode

					23 Relieve pain and discomfort symptoms
Body Stimulation	/	6	/	/	10 Rehabilitation frequency mode
Custom modes	3	3	1	1	3

Electrical stimulation frequency	2-100Hz	2-100Hz	2-100Hz	2-100Hz	1-200Hz
Standard EMG Test, 5 minutes	Not included	✓	Not included	✓	✓
Fast EMG Test, 140 seconds	✓
Biofeedback Scene Training	3	Not included	3	Not included	Not included
EMG GAME	6
ETS Training	✓
Channel 2 Abdominal EMG	✓
Mirror function	Not included				✓
