EMG/ Game/ETS/Mirror/Heat/STIM
Features
• 1 channel EMG (Biofeedback) combined with 2 channel STIM (stimulation).
• 1 channel ETS (EMG triggered stimulation) with stimulation on 2 channels.
• 1 channel Heat(Including stimulation).
• 99 levels of electrical stimulation intensity regulation.
• The combination of visual feedback and voice broadcasting promotes the reconstruction of neural function.
• System parameters can be freely set, and training records can be viewed in real-time.
• 7.0-inch color touch display and 2800mAh large-capacity lithium battery.
EMG/ Game/ETS/Mirror/Heat/STIM

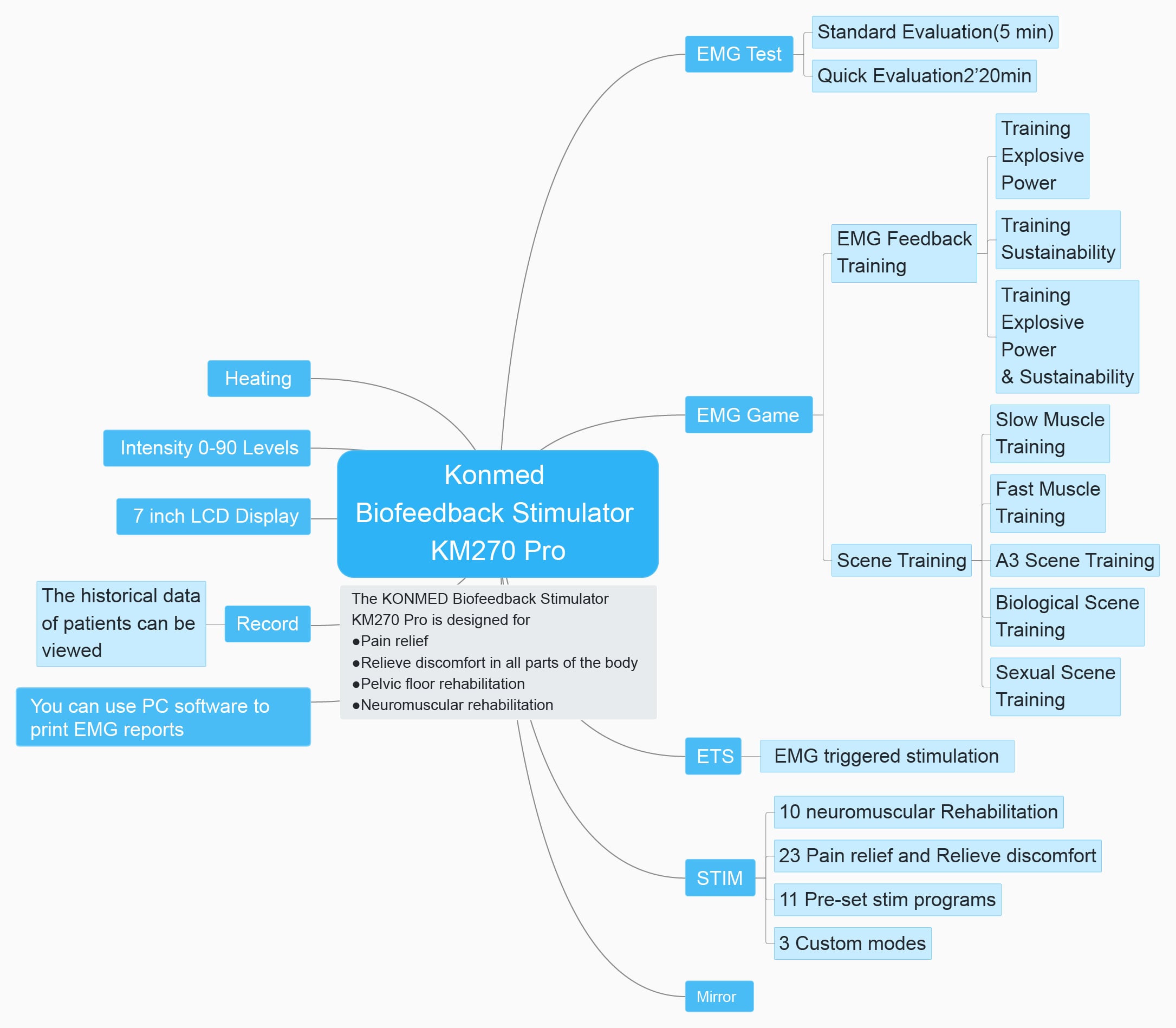

The Konmed Biofeedback Stimulator KM270 Pro is designed for
--Pain relief.
--Relieve discomfort in all parts of the body.
--Neuromuscular rehabilitation.
--Pelvic floor rehabilitation.
EMG Test
Standard muscle or assessment and Quick body surface electromyography assessment.
EMG Game
EMG feedback training
Biofeedback game training, vivid and intuitive muscle contraction through game visual feedback.
Scene Training
Simulate different training scenarios to increase muscle strength and control.
ETS
ETS stands for EMG triggered by Stimulation. Multimedia interactive games for self training and non self training, rebuilding nerves and muscles. ETS is a very powerful technique for muscular rehabilitation, especially useful for Incontinence and Stroke rehabilitation.
Mirror
Using mirror therapy, the movement of the non-paralysed side of the limb is copied to the paralysed side.
Heat
The combination of heat and electrical stimulation effectively relives pain and improves blood circulation.
STIM
Pre-set programs for pelvic floor rehabilitation, pain relief, Relieve discomfort in all parts of the body and neuromuscular rehabilitation.
Programs
2 EMG TEST programs /1 ETS program/ 1 mirror therapy program/ 3 EMG Game and 5 Scene Training programs.
Using a heating handle, both warm and electrical stimulation treatments can be performed simultaneously.
11 Pre-set stim programs for Pelvic floor rehabilitation.
23 Pre-set stim programs for Pain relief and Relieve discomfort in all parts of the body.
10 Pre-set stim frequency program for neuromuscular Rehabilitation.
3 Custom mode programs.
| Biofeedback Stimulators for Clinical use | ||||||||||||||||||||||||
| KM560 | KM270 | KM270Pro | KM580 | |||||||||||||||||||||
|
|
|
 |
|||||||||||||||||||||
| General functions | Channel | 2 Channel EMG 2 Channel/4Channel STIM |
2 Channel EMG 2 Channel STIM | 1 Channel EMG 2 Channel STIM |
2 Channel EMG 4 Channel STIM | |||||||||||||||||||
| Power | Lithium battery or AC | Lithium battery or AC | Lithium battery or AC | Lithium battery | ||||||||||||||||||||
| Display | 7-inch touch screen | 7-inch touch screen | 7-inch touch screen | 3.5-inch touch screen | ||||||||||||||||||||
| PC software | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| Patient report | ✓ | Not included | Not included | Not included | ||||||||||||||||||||
| User Record | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| Electrode accessories | Electrode pad | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| Probe | ✓ | Optional | Optional | Optional | ||||||||||||||||||||
| STIM | Pelvic mode | 8 | Pelvic mode | 11 | 11 | Pelvic mode | 19 | |||||||||||||||||
| Sports mode | 21 | |||||||||||||||||||||||
| Postpartum rehabilitation for women (customizable) | 14 | Relieve pain and discomfort symptoms | 23 | 23 | Rehabilitation mode | 9 | ||||||||||||||||||
| Muscle rehabilitation | 10 | 10 | Swallow mode | 3 Preset modes+7 Custom modes | ||||||||||||||||||||
| Custom mode | 1 | Custom mode | 3 | 3 | TENS | 6 Preset modes+4 Custom modes | ||||||||||||||||||
| NMES | 10 Custom modes | |||||||||||||||||||||||
| Heating+ STIM | FES | 10 | ||||||||||||||||||||||
| Electrical stimulation frequency | 1-120Hz | 1-200Hz | 1-200Hz | 1-100Hz | ||||||||||||||||||||
| EMG TEST | Standard EMG Test, 5 minutes | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| Fast EMG Test, 140 seconds | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| EMG Free Training | Not included | Not included | Not included | ✓ | ||||||||||||||||||||
| EMG GAME | Biofeedback Scene Training | 5 | 5 | 5 | 4 Preset+1 Custom | |||||||||||||||||||
| EMG Game | 3 | 3 | 3 | 4 | ||||||||||||||||||||
| ETS | ETS Training | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| 2 EMG Channel | ✓ | ✓ | 1 EMG Channel | ✓ | ||||||||||||||||||||
| MIRROR | Mirror function | Not included | ✓ | ✓ | ✓ | |||||||||||||||||||
