TENS EMS
Home> Products> TENS EMS

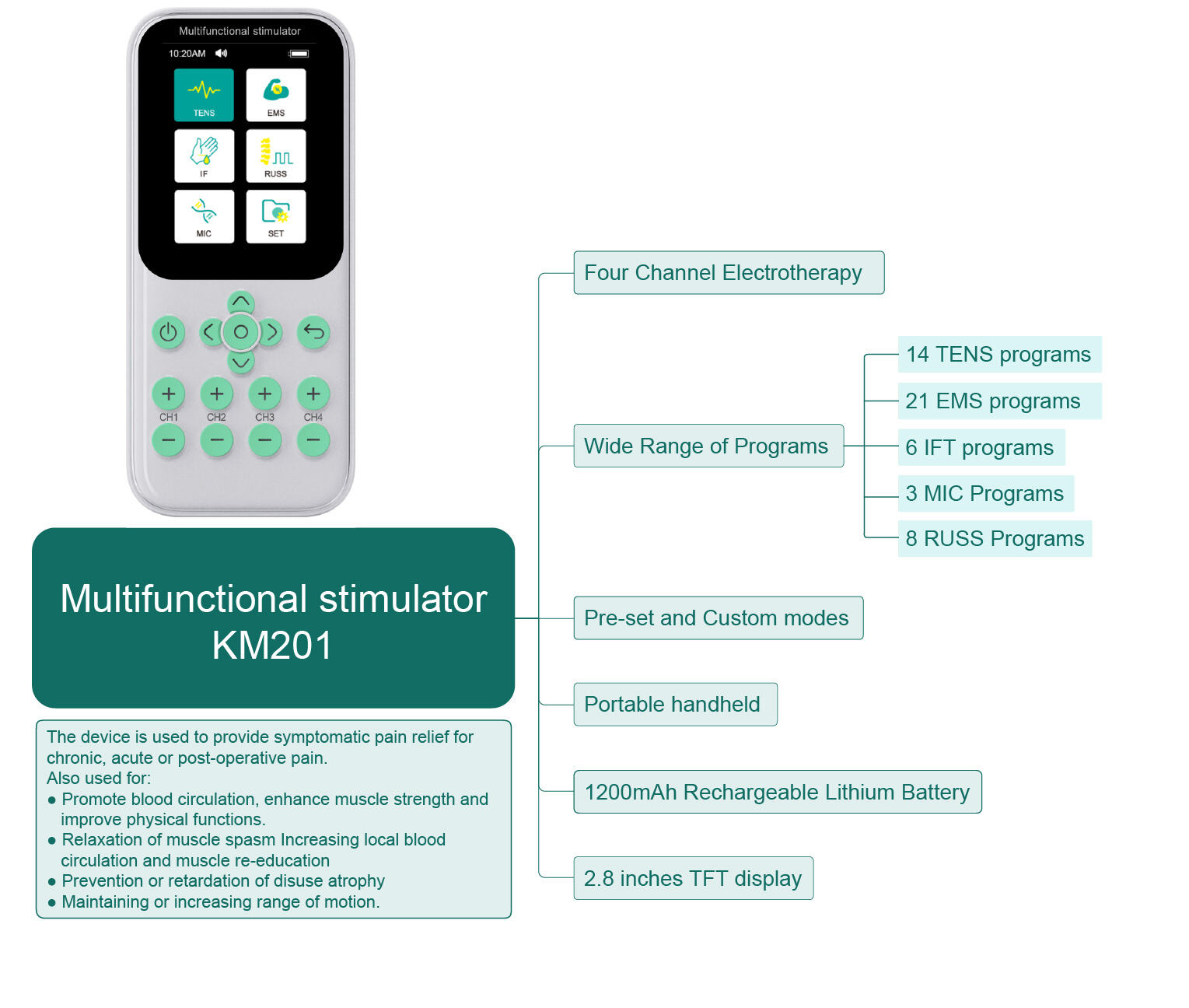

Multifunctional stimulator KM201

The KM201 Multifunctional Stimulator is a portable electrotherapy device featuring five therapeutic modes: Transcutaneous Electrical Nerve Stimulation (TENS), Electrical Muscle Stimulation (EMS), Interferential (IF), Microcurrent (MIC) and Russian Stimulation (RUSS), which are used for pain relief and electrical muscle stimulation.

Features

New and improved 2.8 inches full color TFT display.

D.C. 7.4V 1200mAh large-capacity rechargeable lithium battery.

4 channel TENS and EMS.

2 channel IFT / MIC and RUSS.

Description

DESCRIPTION

The stimulator sends gentle electrical current to underlying nerves and muscle groups via electrodes applied on the skin. The parameters of the device are controlled by the buttons on the front panel. The intensity level is adjustable according to the needs of the individual patient.

The device is used to provide symptomatic pain relief for chronic, acute or post-operative pain.

Also used for:

• Promote blood circulation, enhance muscle strength and improve physical functions.

• Relaxation of muscle spasm

• Increasing local blood circulation and muscle re-education

• Prevention or retardation of disuse atrophy

• Maintaining or increasing range of motion.



Four Channel Electrotherapy

The four channel design allows you to target specific areas or treat multiple areas simultaneously.



Wide Range of Programs

14 TENS programs: TENS (Transcutaneous Electrical Nerve Stimulation) is renowned for its ability to provide symptomatic pain relief. Whether you suffer from chronic pain or back pain, KM201's 14 TENS programs employ pain gate and endorphin release mechanisms to alleviate your discomfort effectively.

21 EMS programs: For muscle training, toning, bulking, and rehabilitation post-injury, Unipro incorporates EMS (Electrical Muscular Stimulation). With 21 EMS modes catering to different muscle sizes, including an innovative 'advanced muscle mass' mode and asynchronous stimulation program, this device allows you to target specific muscle groups for optimal results.

6 IFT programs: Effective Interferential Stimulation: Experience relief from chronic intractable pain, joint pain, and constipation/bowel dysfunction with 2 and 4 pole Interferential Stimulation.

3 MIC ProgramsMicrocurrent therapy aids in wound healing and further contributes to pain relief.

8 RUSS ProgramsRussian current takes pain relief to the next level. Like other currents of intermediate frequency, Russian currents programs facilitate penetration into deeper muscles and may be preferred to low frequency currents (e.g. rectangular biphasic and faradic).



Portable and Rechargeable

KM201 features an integrated rechargeable battery, providing over 6 hours of use, making it suitable for both home and clinic use.

Embrace the power of all-in-one physiotherapy and rehabilitation with KM201 and experience the ultimate relief and recovery that this cutting-edge device has to offer.



Specification

Basic Specification

Product Name

Multifunctional stimulator

Model

KM201

Power Source

d.c. 7.4V 1200mAh Li-ion Battery

Adapter parameters

Input: AC 100-240V, 50/60Hz

Output: DC 5V, 1A

Method of Line Current Isolation

Type BF Applied Part

Number of output channels

4

Weight of Main Unit

300g

Dimension of Main Unit

(L x W x H)

150mm x 73mm x 20mm

Dimension of pads:

50mm x 50mm

Housing Materials of Main Unit

ABS plastic

Materials of Accessories

Pads Material: Non-woven fabric, hydrogel, PVC wire

Service life

Main unit:5 years

Pads: About 30 times

Additional Features

Environment for operation

Temperature: 10~40°C

Humidity: 0-90%RH

Atmospheric Pressure: 70~106kPa

Environment for storage

Temperature: -10~50°C

Humidity: 0-90%RH

Atmospheric Pressure: 70~106kPa
